Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

Model NO. : QX

Transport Package : Plastic Bag, Export Cartons

Specification : 16mm to 110mm (1/2" to 4" )

Trademark : QX

Origin : China(Mainland)

HS Code : 3917400000

Supply Ability : 50000 PCS/Month

Material : Plastic

Connection : Female

Material Like : 100% New Material

Size : Complete Size

Feature : with 201 Oring, Color Light

Package : Standard and Good Package

Samples : US$ 0/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

Drip Irrigation Pipe Fittings Plastic PP PE Compression HDPE Pipe Fittings Coupling PVC Plumbing Pipe Fittings

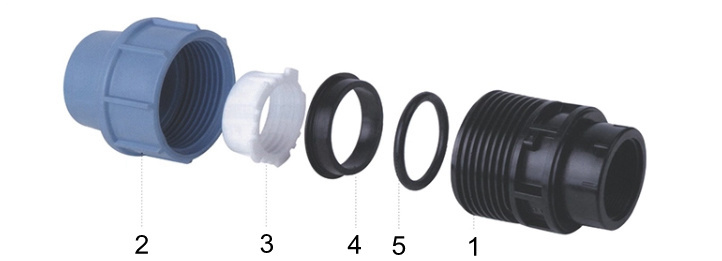

1. Component breakdown:

*NO.*	*PART*	*MATERIAL*
1	Body	Heterophasic block polypropylene co-polymer(PP-B) of exceptional mechanical properties even at high temperature.
2	Nut	Polypropylene with dye master of high stability to UV rays andsolidity to heat( S grade according to standard DIN54004)
3	Clinching ring	Polyacetal resin(POM)with high mechanical resistance
4	Blocking bush	Polypropylene
5	O-ring	Special elastomeric acrylonitrile rubber(EPDM) for alimentary use

1. Size Available:
Turkey type

Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

*Item No.*	*Name*	*Size(mm)*
QX81	Tee	16-110
QX82	Coupling	16-110
QX83	Elbow	16-110
QX84	End cap	16-110
QX85	Male adapter	16x1/2"-110x4"
QX86	Female adapter	16x1/2"-110x4"
QX87	Reducing tee	25x20x25-110x90x110
QX88	Reducing coupling	20x16-63x50
QX89	Female tee	16x1/2"-90x3"
QX90	Male tee	16x1/2"-63x2"
QX91	Female elbow	16x1/2"-90x3"
QX92	Male elbow	16x1/2"-90x3"

Italy type
Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

*Item No.*	*Name*	*Size(mm)*
QX94	Tee	16-110
QX95	Coupling	16-110
QX96	Elbow	16-110
QX97	End cap	16-110
QX98	Male adapter	16x1/2"-110x4"
QX99	Female adapter	16x1/2"-110x4"
QX100	Reducing tee	25x20x25-110x90x110
QX101	Reducing coupling	20x16-63x50
QX102	Female tee	16x1/2"-90x3"
QX103	Male tee	16x1/2"-63x2"
QX104	Female elbow	16x1/2"-90x3"
QX105	Male elbow	16x1/2"-90x3"

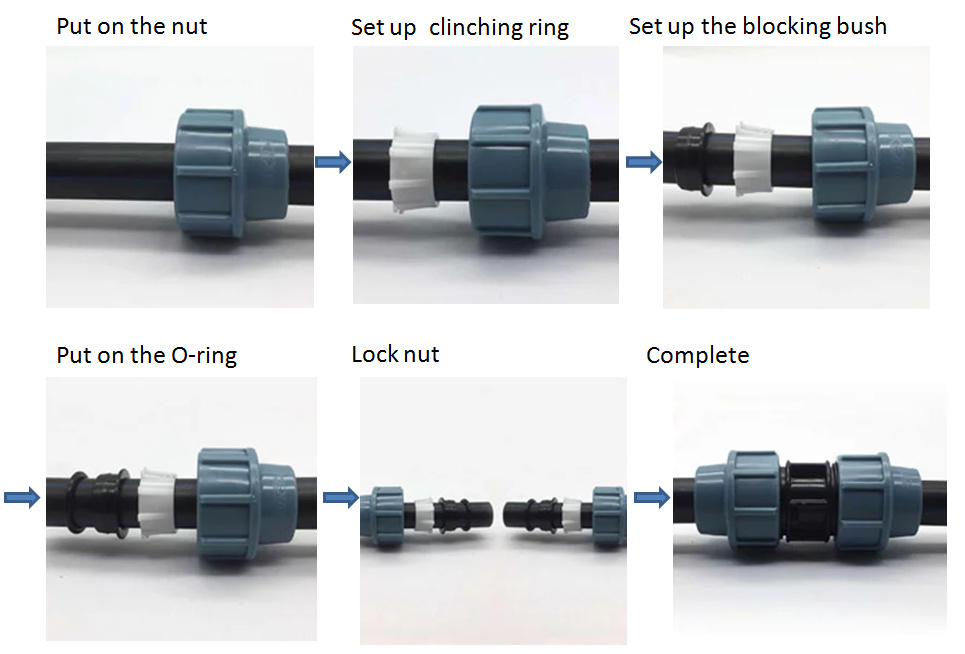

3. Installation Process:

Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

4. Packing:

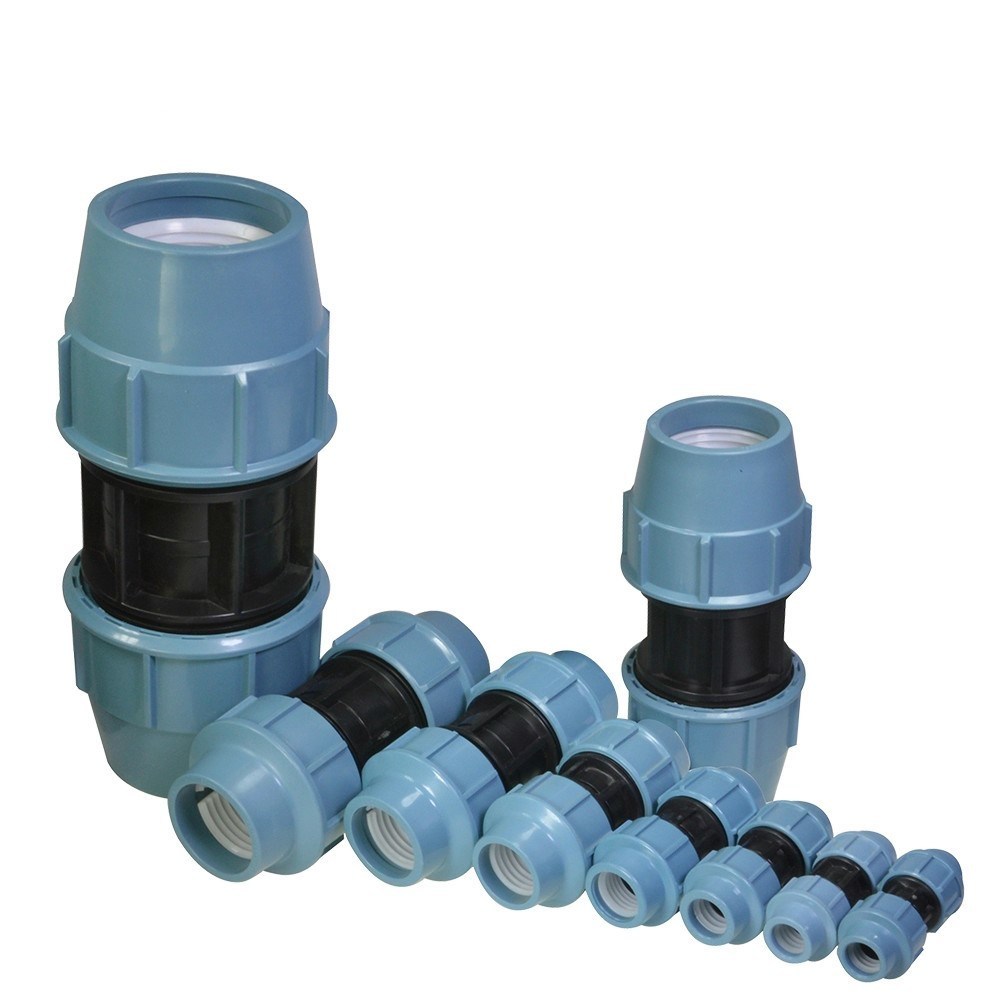

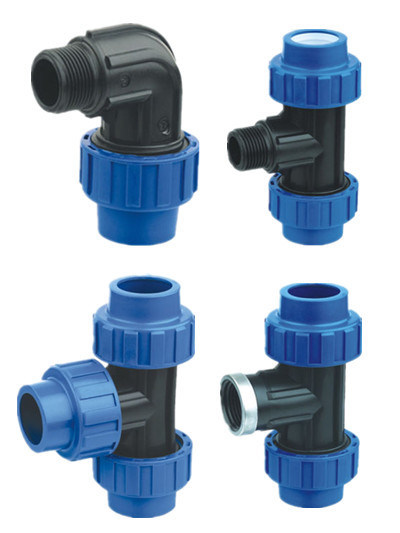

5. Other Other Products:

6. Applications:

Irrigation
water supply
Garden
cold water supply
Industry

Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

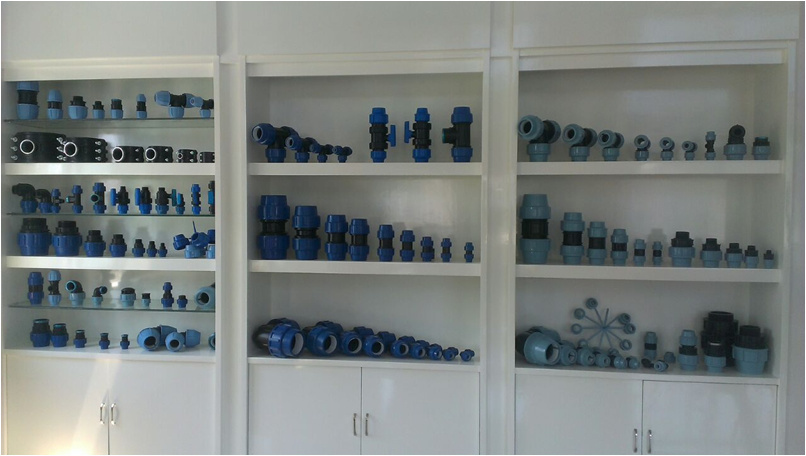

7. Showroom Display:

Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

8. Certificate:

Plastic PP PE Compression HDPE Pipe Fittings Coupling for 16mm to 110mm Drip Irrigation

9. FAQ

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
