Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

Model NO. : QX

Structure : Fixed Ball Valve

Type : Fixed Ball Valve

Function : Shutoff

Temperature : Normal Temperature

Standard : DIN, ANSI, NPT, BS, JIS

Application : Industrial Usage, Water Industrial Usage, Household Usage

Color : Light Gray, Deep Gray, Black, White

Standard Like : DIN, BSPT, ASTM, ANSI

Quality : EPDM Rubber+PVC Ball+PVC Handle, High Thickness

Package : Plastic Bag Each One, Stron Export Carton

Feature : New Fashion Handle, Easy Use, Long Service Life

Transport Package : Carton, Polybag, Color Box or Customized

Specification : 1/2′, 3/4′, 1′, 1-1/4′, 1-1/2′, 2′, 2-1/2′, 3", 4"

Trademark : QX

Origin : Zhejiang, China

HS Code : 8481804090

Supply Ability : 70000 Piece /Month

Media : Water

Material : PVC

Connection Form : Socket or Threaded

Driving Mode : Manual

Nominal Pressure : Pn10, Pn16

Channel : Straight Through Type

Samples : US$ 3/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

Specification & Dimensions :

NO	*PART*	*MATERIAL*	*OTY*
1	Body	UPVC,CPVC	1
2	O-ring	EPDM,FPM	2
3	Stem	PVC,CPVC	1
4	Ball	PVC,CPVC	1
5	Seat seal	TPE,TPV,TPO	2
6	O-ring	EPDM,FPM	1
7	End connector	UPVC,CPVC	2
8	Union nut	UPVC,CPVC	2
9	Handle	PVC	1

*Size(mm)*	*NPT*	*BSPT*	d	C	E	A	L
(20mm)3/4"	14	14	20	60	90	72	78
(25mm)1"	11.5	11	25	69	103	75	92
(32mm)1 1/4"	11.5	11	30	80	122	85	106
(40mm)1 1/2"	11.5	11	38	95	139	95	117
(50mm)2"	11.5	11	48	116	166	110	144
(65mm)2 1/2"	8	11	59	139	192	128
(80mm)3"	8	11	72	170	235	139	193
(100mm)4"	8	11	96	210	277	160	227

Products advantages:

No leak, positive shut off.
Pressure retaining test for each piece.
Excellent flow characteristics and flow control.
Switch test for each piece.
Standard pressure test for each piece
Steady opening and closing, lower torque, ergonmic handle.

Product Process:

Each product will be done the leakage test!

Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

Handle options:

Various types available
Vacant and solid available

Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

Packing:

Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

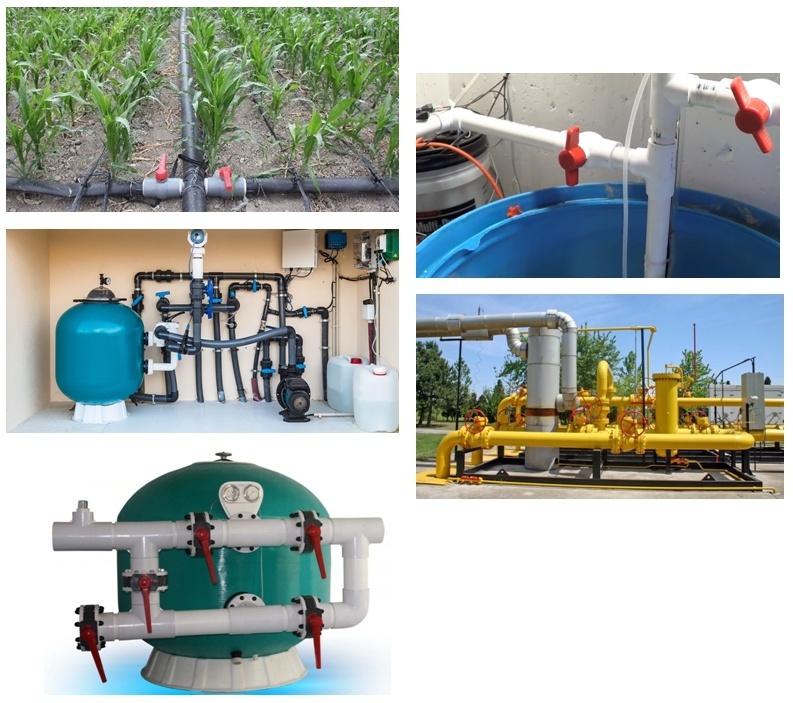

Application:

Agricultural irrigation
Swimming pool
Sewage treatment
Water treatment
Piping system
Water recycling project

Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

Certificate:

Normal Temperature PVC M/F Single Union Ball Valve for Irrigation and Swimming Pool

Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
