Dark Green Handle Duluex Octagonal Ball Valve for Industrial Usage in Swimming Pool

Product Categories

Ningbo Qianxiang Huiya International Trade Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Dark Green Handle Duluex Octagonal Ball Valve for Industrial Usage in Swimming Pool

Model NO. : QX

Structure : Fixed Ball Valve

Type : Flexible Ball Valve

Function : Blow-Down Valve

Temperature : Low Temperature

Standard : DIN, ANSI, NPT, BS, JIS

Application : Industrial Usage, Water Industrial Usage, Household Usage

Feature : UV Protection

Quality : 100% New Material, High Thickness

Package : Put Two Inside Box, Then with Export Strong Carton

Supply Service : Can with Customer Brand, Kinds of Handle Choose

Connection : Socket, Thread

Transport Package : Standard Export Carton Box

Specification : 1/2", 3/4", 1", 11/4", 11/2", 2", 21/2", 3", 4",5"

Trademark : QX

Origin : China

HS Code : 8481804090

Supply Ability : 10000 Cartons/Month

Media : Water

Material : PVC

Connection Form : Thread

Driving Mode : Manual

Nominal Pressure : Pn10, Pn16, Pn25

Channel : Straight Through Type

Samples : US$ 5/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

Specification & Dimensions:

*NO.*	*PART*	*MATERIAL*	*QTY*
1	Handle	PP, ABS	1
2	Body	UPVC, CPVC, PP	1
3	Cap	PP,ABS	1
4	O-Ring	EPDM, NBR	1
5	Seat Seal	TPE, PTFE	2
6	Ball	PP, UPVC, CPVC	1

*SIZE*	*DIN(mm)*	*BS(mm)*	*JIS(mm)*	*ANSI(mm)*	*NPT Thd./in*	*BSPT Thd.in*	d1	D	L1	L	H1	H
DN15 (1/2")	20	21.5	22.11	21.6	14	14	15	30	45	78	45	63
DN20 (3/4")	25	26.9	26.13	26.9	14	14	18	35	74	90	51	74
DN25 (1")	32	33.7	32.16	33.8	11.5	11	23	43	88	102	57	84
DN32( 1 1/4")	40	42.2	38.19	42.4	11.5	11	28	52	92	109	64	96
DN40(1 1/2")	50	48.4	48.21	48.5	11.5	11	38	61	117	123	73	110
DN50 (2")	63	60.5	60.25	60.7	11.5	11	47	75	128	143	80	125
DN65( 2 1/2")	75	75.3	76.6	73.4	8	11	56	90	176	176	108	162
DN80 (3")	90	89	89.6	89.4	8	11	72	108	188	242	115	180
DN100 (4")	110	114.5	114.7	114.8	8	11	90	135	208	288	130	210

Products advantages:

No leak, positive shut off.
Pressure retaining test for each piece.
Excellent flow characteristics and flow control.
Switch test for each piece.
Standard pressure test for each piece
Steady opening and closing, lower torque, ergonmic handle.

Product Process:

Each product will be done the leakage test!

Dark Green Handle Duluex Octagonal Ball Valve for Industrial Usage in Swimming Pool

Dark Green Handle Duluex Octagonal Ball Valve for Industrial Usage in Swimming Pool

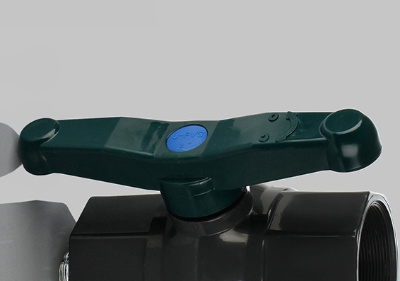

Handle options:

Various types available
Vacant and solid available

Dark Green Handle Duluex Octagonal Ball Valve for Industrial Usage in Swimming Pool

Packing:

Applications:

Agricultural irrigation
Swimming pool
Sewage treatment
Water treatment
Piping system
Water recycling project

Dark Green Handle Duluex Octagonal Ball Valve for Industrial Usage in Swimming Pool

Certifricate:

Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
