Swimming Pool 4" PVC Butterfly Valve with Manual Driving Mode and Flange Connection

Model NO. : QX06

Working Temperature : Normal Temperature (-40°C

Standard : ANSI, DIN, BS, JIS, Cns

Application : Industrial Usage, Water Industrial Usage, Household Usage

End Connect : Flange

Test : 100% Test

Material : Brand New PVC, ABS

Handle : PVC/ABS

O-Ring : NBR/EPDM

Steam : Carbon Steel/ SS304/ SS316

Transport Package : Plastic Bag Inside, Export Carton, Pallets

Specification : 4"-20"

Trademark : QX

Origin : China(Mainland)

HS Code : 000000

Supply Ability : 50000 PCS/Month

Media : Water

Driving Mode : Manual

Connection Form : Flange

Seal Form : Auto Sealed

Valve Stem : Normal

Work Pressure : Low Pressure (Pn<1.6mpa)

Samples : US$ 5/Piece 1 Piece(Min.Order) | Request Sample

Customization : Available | Customized Request

MOQ : 1pc

Packaging Details : Customized

Delivery Time : 5-8 days

Payment Terms : L/C,T/T

Contact Now

Specification:

NO PART MATERIAL OTY

1 Body PVC,CPVC,PPG 1

2 Seat seal EPDM,FPM 1

3 DISC PVC,CPVC,PPG 1

4 Bolt SUS304 4

5 Stem STEEL/SUS304/SUS316 1

6 O-ring EPDM,FPM 2

7 Key STEEL 1

8 Gear box IRON 1

9 Handle wheel IRON 1

10 Pin STEEL 1

Dimensions:

4" 5" 6" 8" 10" 12" 14" 16" 20"

Size DN 100 125 150 200 250 300 350 400 500

ΦD 228 258 287 344 412 460 500 565 670

D.C.P.ΦD DIN 180 210 240 295 350 400 460

ANSI 191 216 241 298 362 432 476 540

JIS 175 210 240 290 355 400 445 510

Φd 98 122 146 179 255 302 345 395 490

L 54 64 70 88 98 108 88 98 135

Φ1 145 280 280 280 280 280 380 380 280

L1 120 200 200 220 220 280 280

H1 140 168 181 260 280 410 490 520

H 340 385 417 551 595 670 770

M 120 180 180 180 180 250 250 865

N 90 100 100 130 130 220 220

n-Φe DIN 8-Φ19 8-Φ19 8-Φ23 8-Φ23 12-Φ25 12-Φ25 16-Φ25 16-Φ27 20-Φ32

ANSI 8-Φ19 8-Φ19 8-Φ23 8-Φ23 12-Φ25 12-Φ25 12-Φ29 16-Φ29

JIS 8-Φ19 8-Φ19 8-Φ23 8-Φ23 12-Φ25 12-Φ25 16-Φ25 16-Φ25 16-Φ27

PN PSI 150 150 150 150 100 100 60 60 60

Mpa 1 1 1 1 0.6 0.6 0.4 0.4 0.4

Handle advantages:

The pressure resistance is stronger than the handle type.
Size 10"-20" recommended.

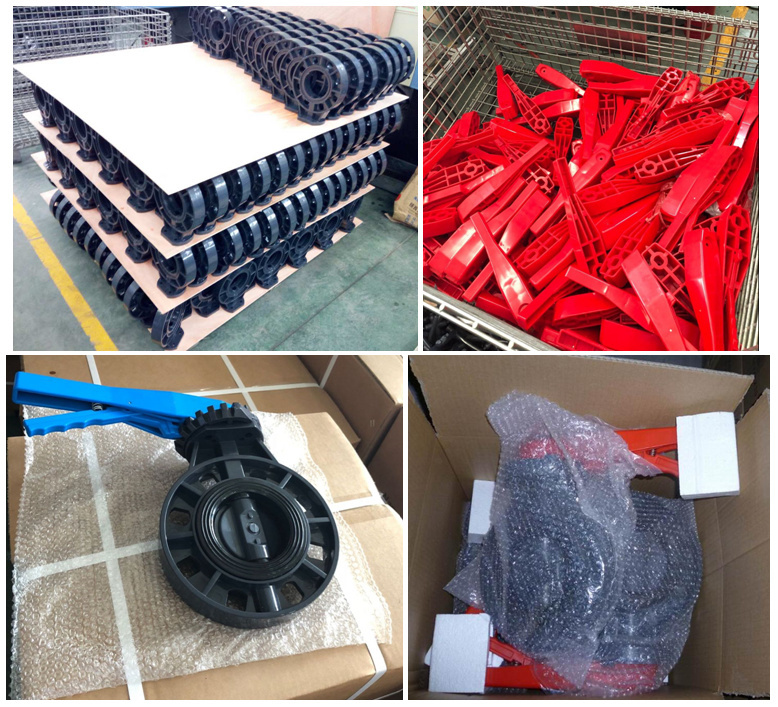

Packing:

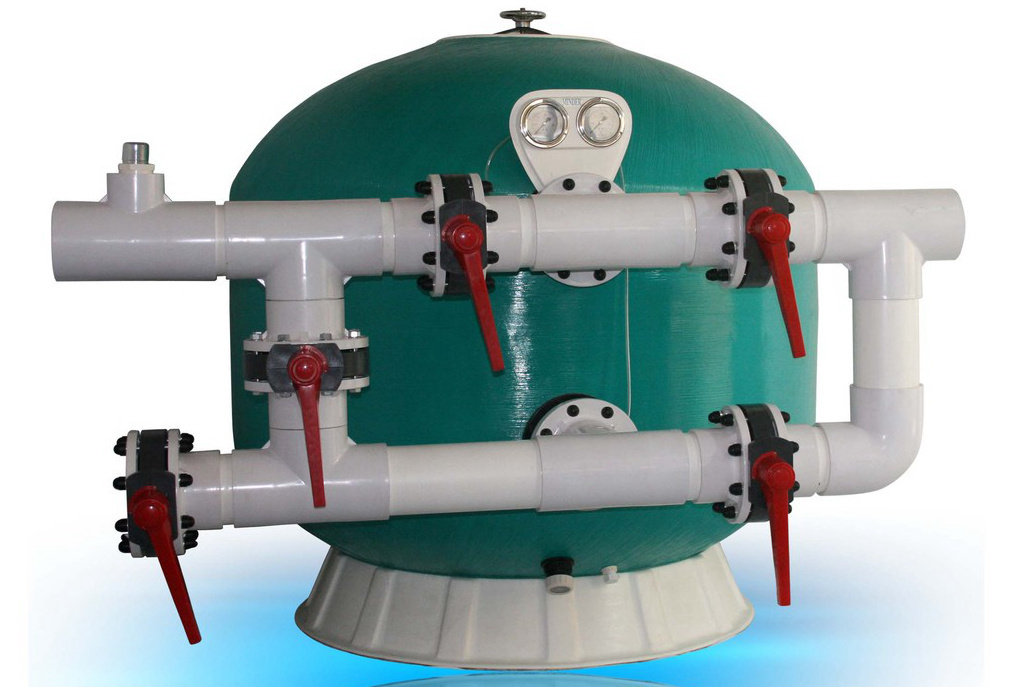

Application:

Agricultural irrigation
Swimming pool
Sewage treatment
Water treatment
Piping system
Water recycling project

Product process:

Certificate:

Our strength:

About product:

100% new materials.
Environmental friendly product with non-toxic.
Good looking and life long service.
Quality will be strongly controlled while producing, testing and packing before leaving the factory.
Wonderful ability in chemical corrosion resistance.
Easy and fast installation, lowering the cost.
Customized.

About service:

We have full exporting experience to Southeast Asia, Africa, Middle east, North America and South America.
Different quality and thickness valves with various style offered to meet customer's need from region to region.
Free samples offered.
Each order will be carefully taken of even the order quantity is small.
After-sale will be responded and solved in short time.
OEM is available.
Quick and stable delivery time.
